The NPT Thread ends ball valve, male or female threaded ends, male or female threaded ends, RPTFE,DERLIN,NYLON and PEEK seats. Different materials for seats, gaskets and packing may be choose acc. to different using conditions, to cut off or connect the media in middle and low pressure pipelines. The driving modes include manual operation, or pneumatic operation and electric operation. According to different structure designs, the valves can be one-piece, two-piece and three-piece and three way.
|
|
Size:1/4 -2 Pressure: Class150LB-900LB Material: WCB,LCB,CF8,CF8M,CF3,CF3M, A105,LF2,F304,F316,F304L,F316L Design & Manufacture Std.: API608,ASME B16.34 Threaded End: G, NPT, BSP, BSPT, DIN259/2999 Test Standard: API598 Structure Type: One-piece, Reduced Bore Operated way: Lever
|
|
|

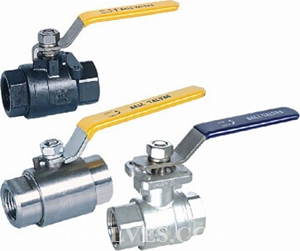

Size:1/4 -4 Pressure: Class150LB-1500LB Material: WCB,LCB,CF8,CF8M,CF3,CF3M, A105,LF2,F304,F316,F304L,F316L Design & Manufacture Std.: API608,ASME B16.34 Threaded End: G, NPT, BSP, BSPT, DIN259/2999 Butt-weld End.: ASME B 16.25 Socket End: ASME B16.11 Mounting pad:ISO5211 Test Standard: API598 Structure Type: Two-piece Floating type,Full bore Operated way: Lever, Pneumatic, Electric
|
|
|

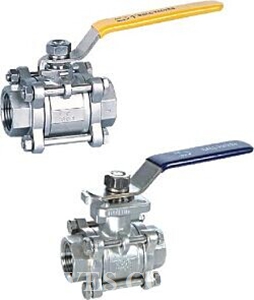

Size:1/4 -4 Pressure: Class150LB-1500LB Material: WCB,LCB,CF8,CF8M,CF3,CF3M, A105,LF2,F304,F316,F304L,F316L Design & Manufacture Std.: API608,ASME B16.34 Threaded End: G, NPT, BSP, BSPT, DIN259/2999 Butt-weld End.: ASME B 16.25 Socket End: ASME B16.11 Mounting pad:ISO5211 Test Standard: API598 Structure Type: Three-piece Floating type,Full bore Operated way: Lever, Pneumatic, Electric
|
|
|
Size:1/4 -2 Pressure: Class 150LB-2500LB Material: CF8,CF8M,CF3,CF3M, A105,LF2,F11,F304,F316,F304L,F316L Design & Manufacture Std.: API602,ASME B16.34 Threaded End: G, NPT, BSP, BSPT, DIN259/2999 Butt-weld End.: ASME B 16.25 Socket-weld End: ASME B16.11 Test Standard: API598 Structure Type: Bolted,welded,Reduced bore,Full bore Operated way: handwheel
|
